Used machines for sale

Used plastic injection molding machine

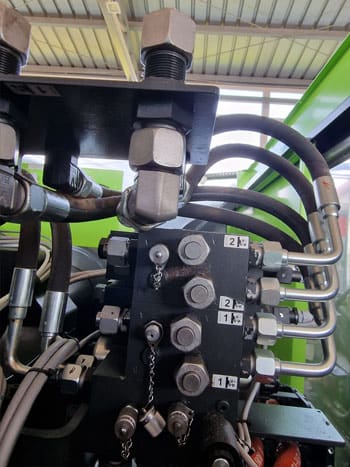

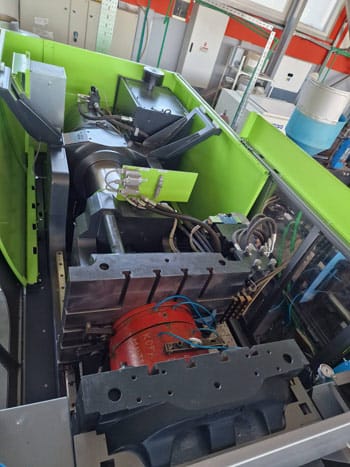

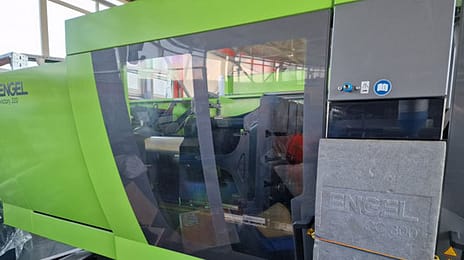

ENGEL VICTORY ECO DRIVE 220/1560, 2021 year.

ENGEL VICTORY ECO DRIVE 220/1560, 2021 production year.
Closing force 220t
Weight: 750 gr/ps

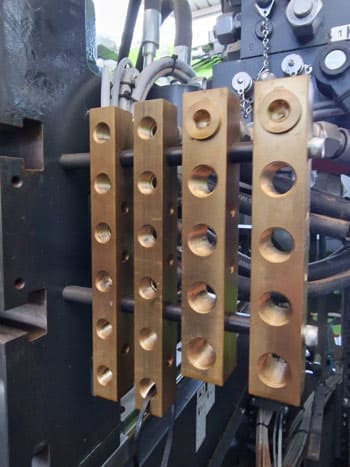

The machine worked for about 20 hours, condition like new, a lot of additional equipment. The machine comes with a PIOVAN vacuum cleaner. The machine has been in stock for 2 years in ENGEL’s warehouse in Linz.
Price FCO loaded on truck.

Used plastic injection molding machine

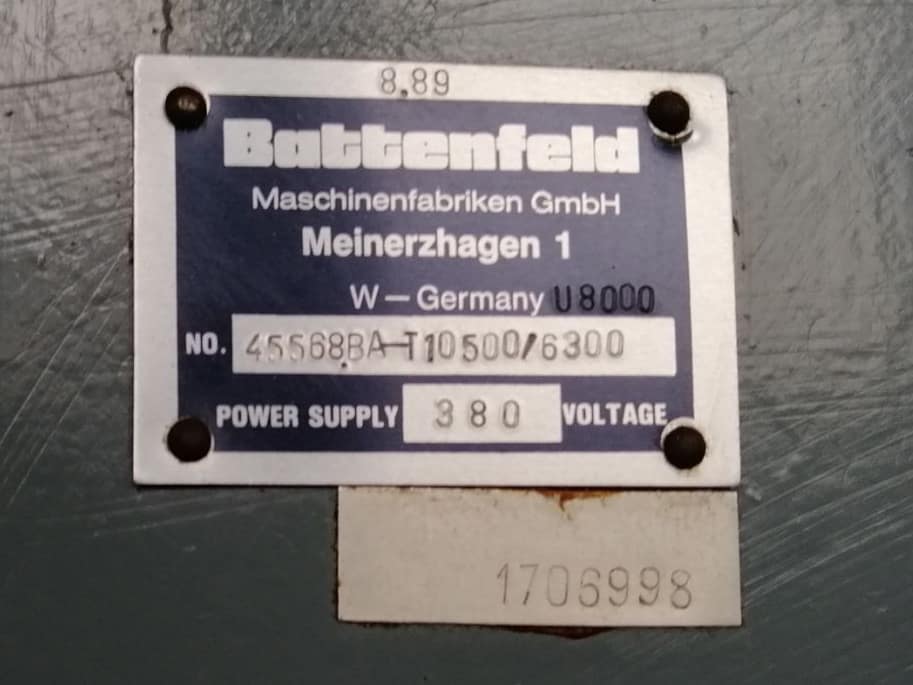

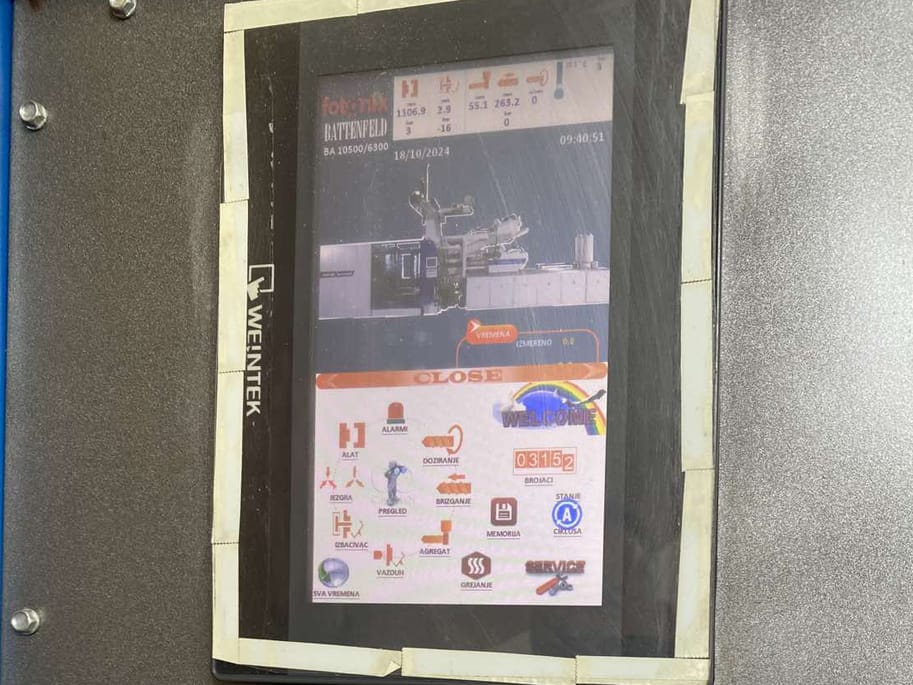

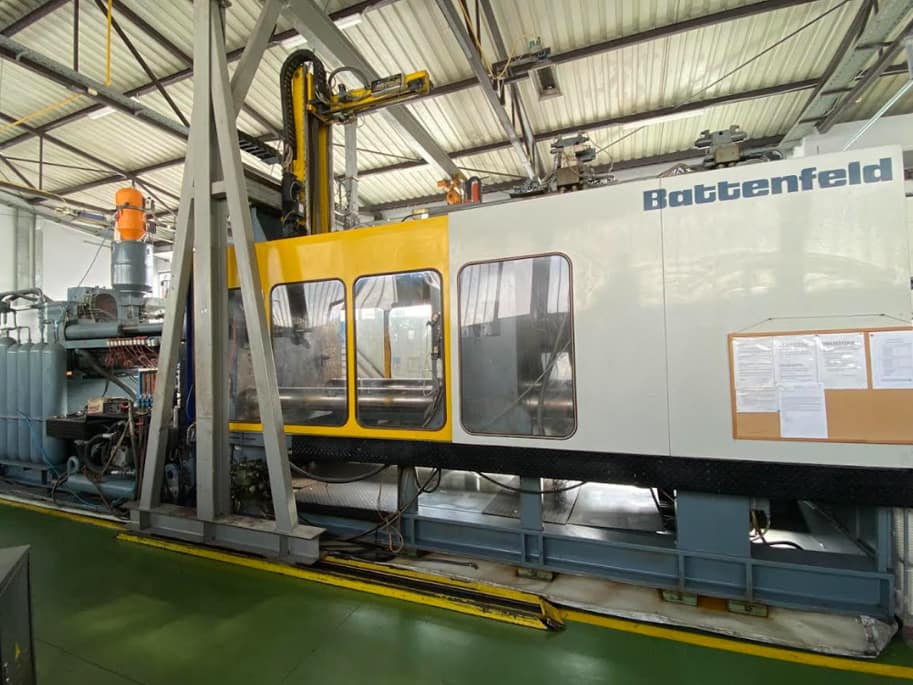

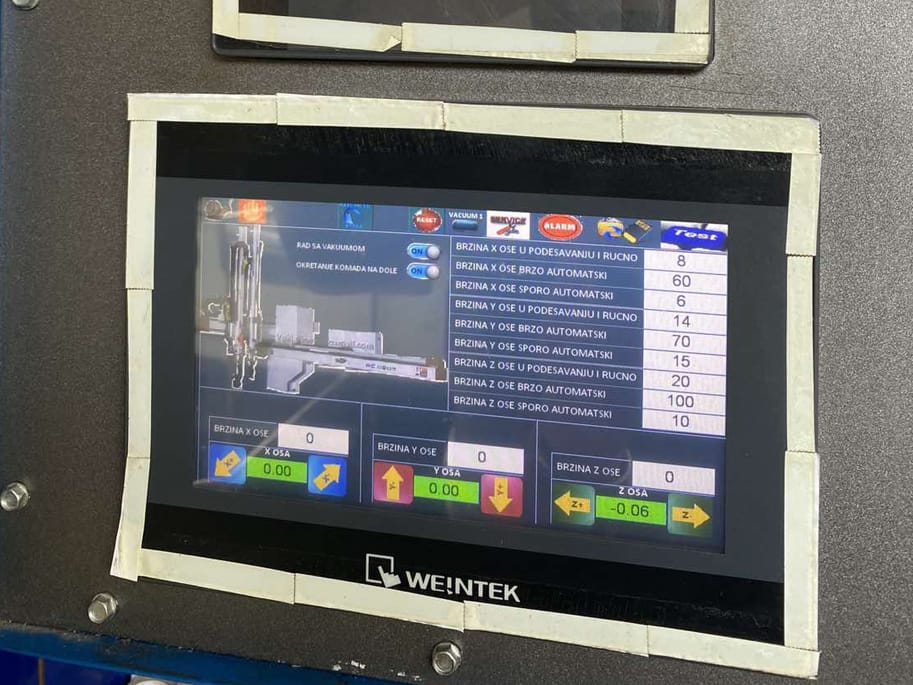

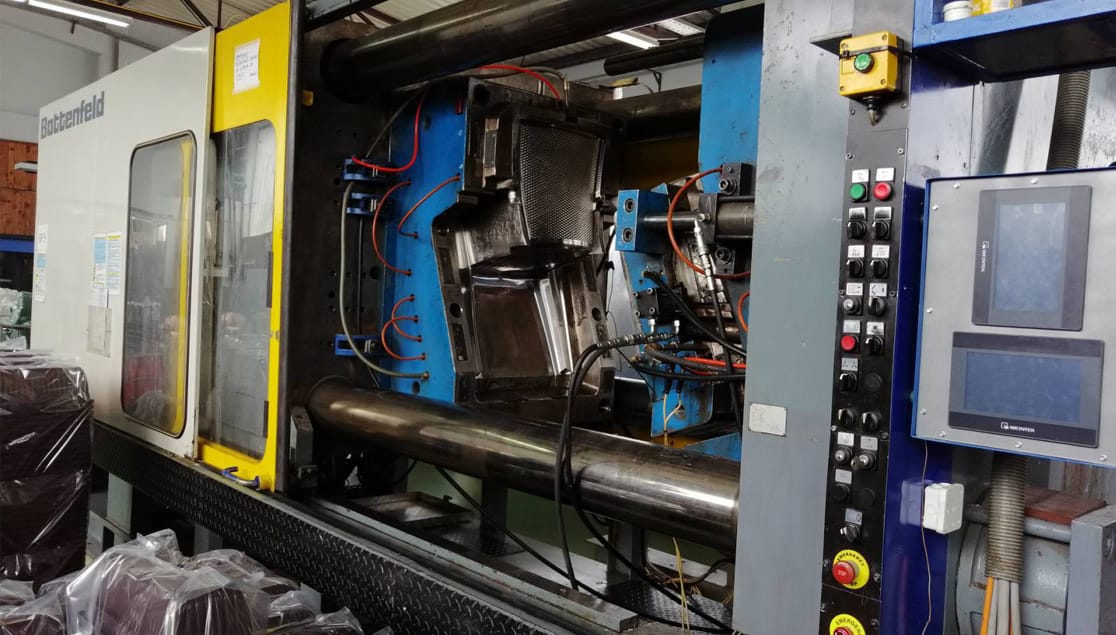

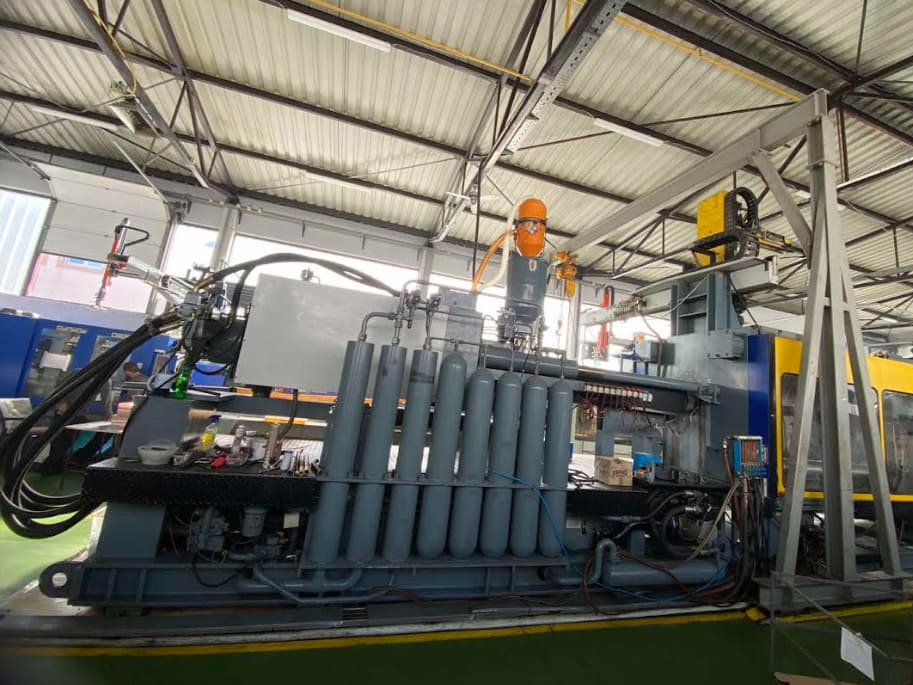

BATTENFELD BA-T 10500 / 6300

General Information (Video sample):

Machine Design
– Two-stage hydraulic clamping system with swivel plate.
Clamping Unit
– Maximum clamping force: 10,500 kN
– Maximum opening force: 181 kN
– Distance between tie bars: 1120 mm
Hydraulic Ejector
– Maximum ejector force: 98 kN
– Maximum ejector stroke: 300 mm
Injection Unit
– Maximum injection force: 1543 kN
– Maximum screw stroke: 420 mm
– Maximum nozzle contact force: 222.6 kN
– Maximum nozzle stroke: 750 mm

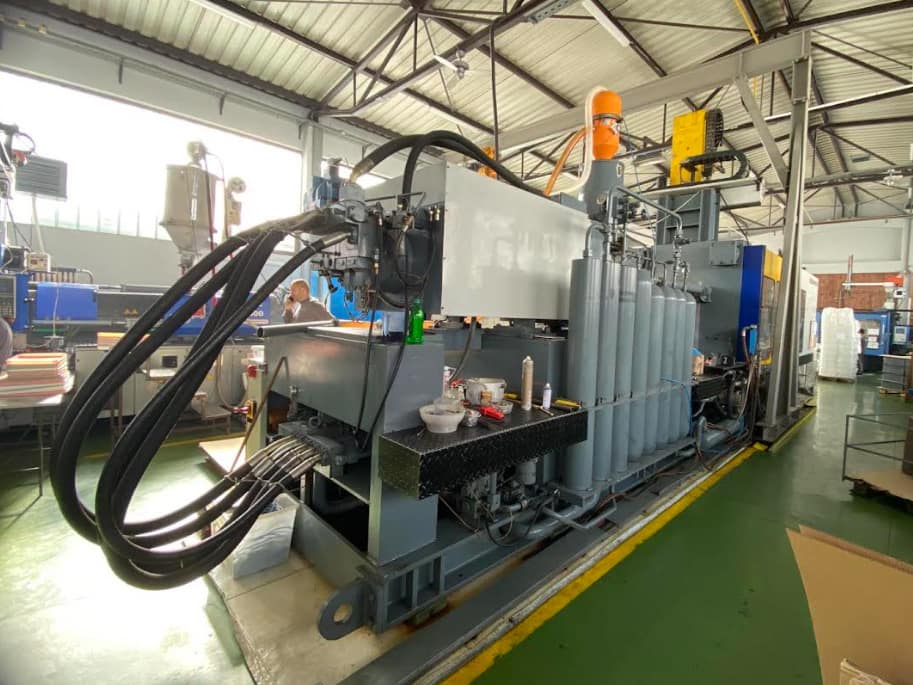

Hydraulic System
– Hydraulic oil tank capacity: approx. 1100 L
– Minimum oil temperature: 35°C
– Oil cooling activation temperature: 45°C

Screw Drive
– Gearbox oil capacity: approx. 31 L
– Thrust bearing housing oil capacity: approx. 1.2 L
– Shift gearbox oil capacity: approx. 10 L
– Electromagnetic clutch oil capacity: approx. 60 L
Installation Height Adjustment
– Planetary gearbox oil capacity: approx. 1
Central Lubrication System
– Tank capacity: approx. 2.7 L
– Lubrication amount per lubrication point and cycle: 0.1 cm³
Weight & Dimensions
– Machine weight: approx. 67,000 kg
– Dimensions (Length × Width): 12.23 × 2.25 m
Cooling Water Connections
– Cooling water inlet: R 1½”
– Cooling water outlet: R 2″
Additional Equipment
– Optional / additional equipment available.
